GSM BASED 2G AUTOMATIC PUMP CONTROLLER WITH GPRS THREE PHASE
| MODELS | GSM | Wi-Fi | Top Tank Level |
Bottom Tank Level |
Low&High Volt Protection |
Dry Run Overload Protection |
Delay On Timer |
Dry Run Restart Timer |
Cyclic Timer |
Real Time Cyclic Timer |
Maximum Run Timer |
Single Phasing Preventer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GSM LITTLE STAR 2R BSN | ||||||||||||
| GSM LITTLE STAR 3R BSN | ||||||||||||
| 3010 GSM BSD | ||||||||||||
| 3010 GSM BOD | ||||||||||||
| 3010 GSM WLC BOD | ||||||||||||
| 3010 GSM WLC BOD WITH WIFI |
GSM LITTLE STAR 2R BSN
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- Regional Languages Select Option for Voice response.
- Pump Operation Status
The available voltage at the site | Pump Load(Current)
Motor ON/OFF status with real-time
Power ON/OFF status as feedback to customers through SMS . - The pump can be operated from anywhere through mobile.
- Low / High voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In-built Delay On Timer,Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- Micro Controller Based Single Phase Preventer.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
GSM LITTLE STAR 3R BSN
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- Regional Languages Select Option for Voice response.
- Pump Operation Status
The available voltage at the site | Pump Load(Current)
Motor ON/OFF status with real-time
Power ON/OFF status as feedback to customers through SMS . - The pump can be operated from anywhere through mobile.
- Low / High voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In built Delay On Timer,Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- Micro Controller Based Single Phase Preventer.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |

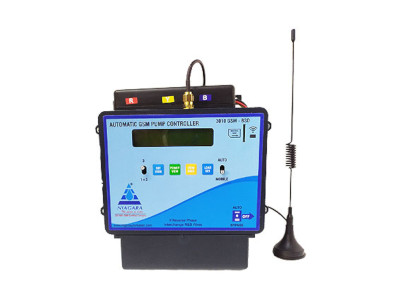

3010 GSM BSD
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- Regional Languages Select Option for Voice response.
- Pump operation status
The available voltage at the site | Pump Load (current)
Motor ON/OFF Status with real-time
Power ON/OFF status as feedback to customers through SMS. - The pump can be operated from anywhere through mobile.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In-built Delay on Timer, Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
3010 GSM BOD
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- Regional Languages Select Option for Voice response.
- Pump operation status
The available voltage at the site | Pump Load (current)
Motor ON/OFF Status with real-time
Power ON/OFF status as feedback to customers through SMS. - The pump can be operated from anywhere through mobile.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In-built Delay on Timer, Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
3010 GSM WLC BOD
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- GSM(T/R) based wireless level Transmitter / Receiver.
- Top Tank Level Control.
- Bottom Tank Level Control.
- Regional Languages Select Option for Voice response.
- Pump operation status
The available voltage at the site | Pump Load (current)
Motor ON/OFF Status with real-time
Power ON/OFF status as feedback to customers through SMS. - The pump can be operated from anywhere through mobile.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In-built Delay on Timer, Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for Float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
3010 GSM WLC BOD WITH WIFI
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps.
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
- Regional Languages Select Option for Voice response.
- Pump operation status
The available voltage at the site | Pump Load (current)
Motor ON/OFF Status with real-time
Power ON/OFF status as feedback to customers through SMS. - The pump can be operated from anywhere through mobile.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In-built Delay on Timer, Cyclic Timer, RTC Timer, Maximum Run Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for Float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
