PANEL PUMP CONTROLLER
| MODELS | Top Tank Level |
Bottom Tank Level |
Low&High Volt Protection |
Dry Run Overload Protection |
Delay on Timer |
Dry Run Restart Timer |
Cyclic Timer |
Maximum Run Timer |
Volt/amps Display |
Single Phasing Preventor |
Dry Run Sensor |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SUB MASTER SSS | |||||||||||
| SUB STARTER SSS | |||||||||||
| SUB MASTER ECO MSS | |||||||||||
| SUB MASTER MSS | |||||||||||
| SMART PREVENTER MSS | |||||||||||
| VOLT/AMP METER |
SUB MASTER SSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable for
Single Phase Submersible Pumps.
Features
- Dry Run / Overload Protection.
- Dry Run Reset Timer Facility.
- Low / High Voltage Cut-off.
- Delay on Timer.
- Cyclic Timer.
- Adjustable Voltage & Current Setting.
- Tank Level Control.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 130 x W 90 x H 70 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
SUB STARTER SSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single Phase Submersible Pumps
Available HP Rating: 1hp, 1.5hp, 2hp, 3hp.
Features
- Top / Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection
- Dry Run Restart Timer Facility.
- Delay On Timer & Cyclic Timer.
- Adjustable Voltage & Current Settings.
- Micro Controller Based Single Phase Preventer.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 130 x W 90 x H 70 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |

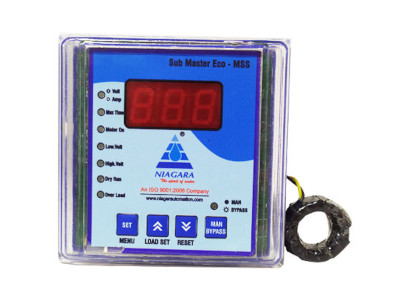

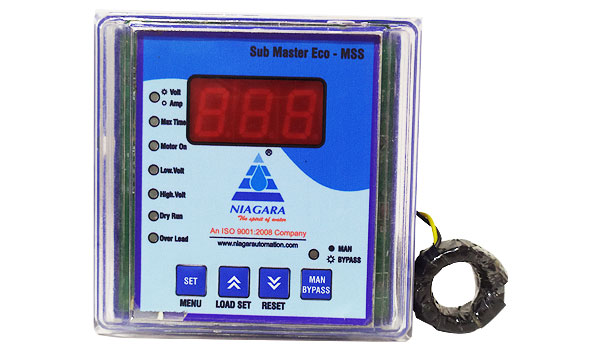

SUB MASTER ECO MSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable for
Single Phase Submersible Pumps.
Features
- Dry Run / Overload Protection.
- Dry Run Reset Timer Facility.
- Delay on Timer | Cyclic Timer.
- Low / High Voltage Cut-off.
- Adjustable Voltage & Current Setting.
- Tank Level Control Optional.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 100 X W 90 X H 105 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |

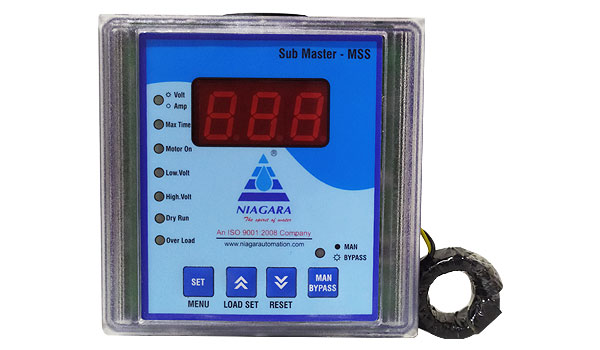

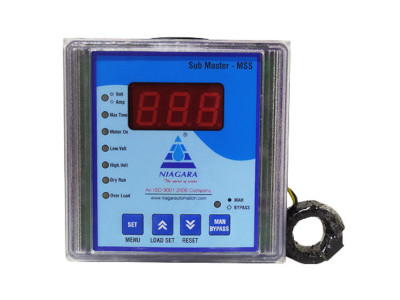

SUB MASTER MSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable for
Single Phase Submersible Pumps.
Features
- Dry Run / Overload Protection.
- Dry Run Reset Timer Facility.
- Delay on Timer | Cyclic Timer.
- Low / High Voltage Cut-off.
- Adjustable Voltage & Current Setting.
- Tank Level Controller Optional.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 100 X W 90 X H 105 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
SMART PREVENTER MSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Three Phase Pumps
Features
- Top / Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- Delay On Timer .
- Cyclic Timer.
- Adjustable Voltage & Current Settings.
- Micro controller Based Single Phase Preventer.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for Float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 100 X W 90 X H 105 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
VOLT/AMP METER
NIAGARA - DOMESTIC AUTOMATION
Suitable For
Single / Three Phase.
Features
- It is used to display RYB voltage.
- It is used to display RYB current.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage | 230V AC & 440V AC |
| Dimension | L 75 X W 40 X H 75 mm |
| Accuracy | +/- 5% |
