SINGLE PHASE MONO BLOCK & JET PUMPS
| MODELS | Top Tank Level |
Bottom Tank Level |
Low&High Volt Protection |
Dry Run Overload Protection |
Delay on Timer |
Dry Run Restart Timer |
Cyclic Timer |
Real Time Cyclic Timer |
Maximum Run Timer |
Pipe line water Sensor |
Dry Run Sensor |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LITTLE STAR L SON | |||||||||||
| LITTLE STAR NEW SON | |||||||||||
| LITTLE STAR MON | |||||||||||
| SUPER STAR MON | |||||||||||
| 1010 BSS | |||||||||||
| 1010 BSD | |||||||||||
| 1010 MOD |

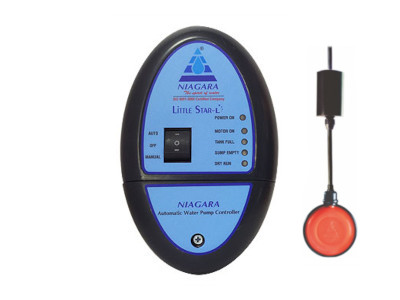

LITTLE STAR L SON
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single phase Monoblock / Open well / Jet Pumps
Features
- Switch off the water pump when the upper tank is full/when the sump is empty.
- Switch on the water pump when the upper tank is empty and when the sump has enough water.
- Switch off the water pump during the dry running mode.
- Magnetic tape Low-level high-level operation.
- Dry run protection(Sensor type).
- LED light indication.
- Power on delay timer.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 120 X W 55 X H 190 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
LITTLE STAR NEW SON
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single phase Monoblock / Open well / Jet Pumps
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 120 X W 55 X H 190 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |

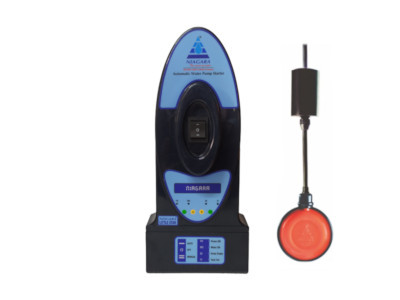

LITTLE STAR MON
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single phase Mono block / Open well /
Jet Pumps
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 120 X W 55 X H 190 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
SUPER STAR MON
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single phase Monoblock / Open well / Jet Pumps
Features
- Semi Automatic and Fully Automatic Operation.
- Top Tank Level Control.
- Bottom Tank Level Control.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 150 X W 55 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
1010 BSS
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single phase Monoblock Openwell /
Jet Pumps and Compressors
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- Delay On Timer.
- Cyclic Timer.
- Seven Segment LED Display Indication.
- Used Programmable Voltage & Current Settings.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration acuuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
1010 BSD
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single Phase Monoblock Openwell /
Jet Pumps and Compressors
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In built On Delay Timer,Cyclic Timer and RTC Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration acuuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |

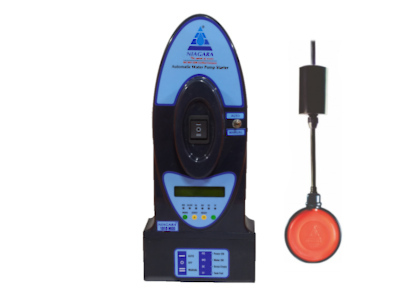

1010 MOD
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
Single Phase Monoblock Openwell /
Jet Pumps and Compressors
Features
- Top Tank Level Control.
- Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- In built On Delay Timer,Cyclic Timer, and RTC Timer.
- Adjustable Voltage & Current Settings.
- User Programmable Timer Settings.
- LCD Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration acuuracy | +/- 5% |
| Dimension | L 150 X W 150 X H 100 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
