| MODELS | Top Tank Level |
Bottom Tank Level |
Low&High Volt Protection |
Dry Run Overload Protection |
Dry Run Timer |
Cyclic Timer |
Real Time Cyclic Timer |
Delay on Timer |
Maximum Run Timer |
Single Phasing Preventor |
|---|---|---|---|---|---|---|---|---|---|---|
| WIRELESS 1010S GSM BOD WITH 1000 GSM BOD | ||||||||||
| WIRELESS 3010 GSM WLC BOD WITH 1000 GSM BOD | ||||||||||
| WIRELESS SWITCH TRANSMITTER - SSN | ||||||||||
| WIRELESS SWITCH RECEIVER - SSN |
WIRELESS 1010S GSM BOD WITH 1000 GSM BOD
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
All types of Single Phase Pumps
Features
- Regional Languages Select Option for Voice response.
- GSM(T/R) based wireless level Transmitter / Receiver.
- Top Tank Level Control.
- Bottom Tank Level Control.
- Low / High Voltage Cut-off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility / Cyclic Timer Facility, RTC Timer.
- Adjustable Voltage & Current Settings.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
WIRELESS 3010 GSM WLC BOD WITH 1000 GSM BOD
NIAGARA - WATER LEVEL CONTROLLER
Suitable For
All types of Single / Three Phase Pumps
Features
- Regional Languages Select Option for Voice response.
- GSM(T/R) based wireless level Transmitter / Receiver.
- Top Tank Level Control.
- Bottom Tank Level Control.
- Low / High Voltage Cut-Off
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility / Cyclic Timer Facility, RTC Timer.
- Adjustable Voltage & Current Settings.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for Float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 150 X W 80 X H 350 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |

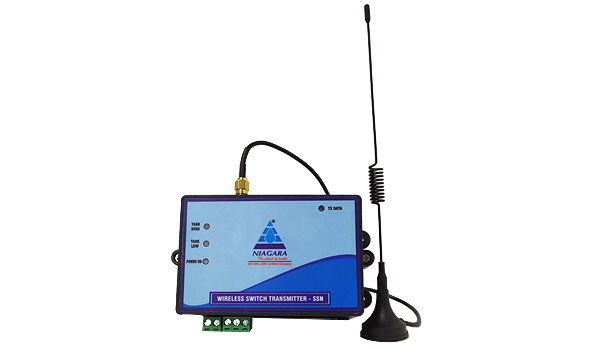

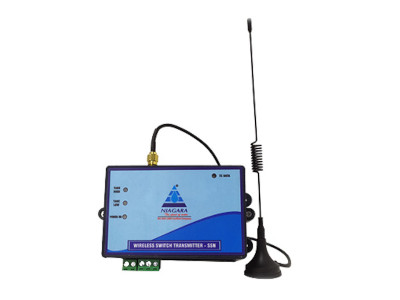

WIRELESS SWITCH TRANSMITTER - SSN
NIAGARA - WATER LEVEL CONTROLLER
Features
- Elimination from tank to water level controller.
- User-friendly LED indication.
- It can be connected with all models of the Niagara water level controller.
- Water pump controller since the water level in upper tank using float technology.
- Switch off the water pump when the upper tank is full / when the sump is empty.
- Switch on the water pump when the upper tank is empty and the sump has enough water.
- Switch off the water pump during the dry running mode.
- Magnetic tape low-level high-level operation.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 130 X W 90 X H 70 mm |
| Motor Rating** | |
| Indirect Load *** | Any Size |

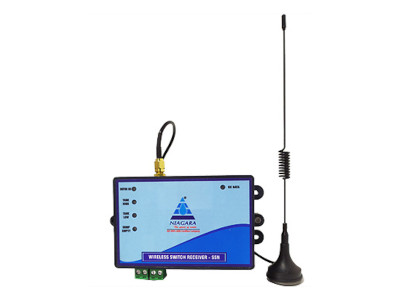

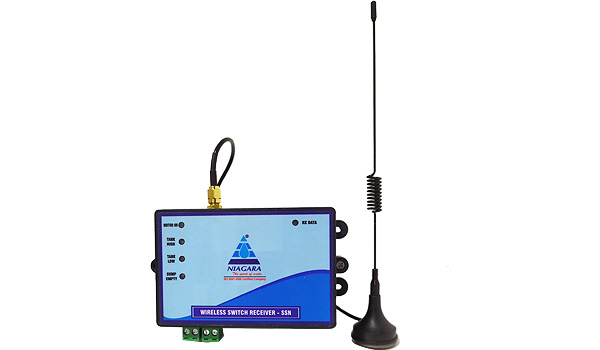

WIRELESS SWITCH RECEIVER - SSN
NIAGARA - WATER LEVEL CONTROLLER
Features
- Elimination from tank to water level controller.
- User-friendly LED indication.
- It can be connected with all models of the Niagara water level controllers.
- Water pump controller since the water level in upper tank using float technology.
- Switch off the water pump when the upper tank is full / when the sump is empty.
- Switch on the water pump when the upper tank is empty and the sump has enough water.
- Switch off the water pump during dry running mode.
- Magnetic tape low-level high-level operation.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 1∅ - 150V to 270V |
| Operating Voltage for Float Sensor | Min 12V DC |
| Dimension | L 130 X W 90 X H 70 mm |
| Operating Current For Load | |
| Relay Load | 1∅ - 20 Amp |
| Motor Rating** | |
| Direct Load | 1∅ - 2 HP |
| Indirect Load *** | Any Size |
