| MODELS | Top Tank Level |
Bottom Tank Level |
Low&High Volt Protection |
Dry Run Overload Protection |
Delay on Timer |
Dry Run Restart Timer |
Cyclic Timer |
Maximum Run Timer |
Single Phasing Preventer |
|---|---|---|---|---|---|---|---|---|---|
| NIAGARA PREVENTER - SSN | |||||||||
| SMART PREVENTER 2R | |||||||||
| SMART PREVENTER 3R | |||||||||
| DRY RUN / OVERLOAD - SSS |
NIAGARA PREVENTER - SSN
NIAGARA - AGRICULTURAL AUTOMATION
Features
- Power on delay timer facilities.
- Single phase preventer option.
- Reverse phase sensing option.
- Phase sequence facilities.
- Auto & semi automatic facilities.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage | 300V to 470V AC |
| Dimension | L 130 X W 90 X H 70 mm |

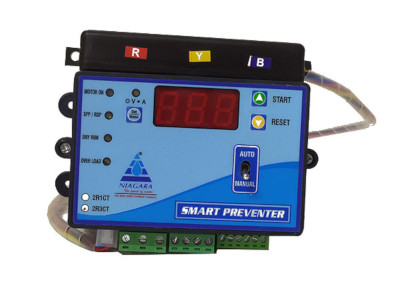

SMART PREVENTER 2R
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps
Features
- Top / Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- Delay On Timer.
- Cyclic Timer.
- Adjustable Voltage & Current Settings.
- Micro controller Based Single Phase Preventer.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 130 X W 90 X H 70 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |

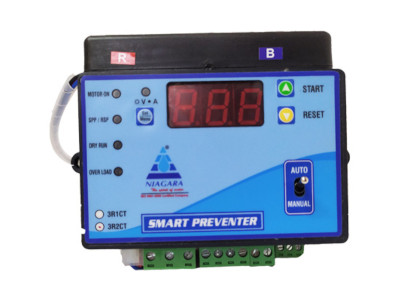

SMART PREVENTER 3R
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Three Phase Pumps
Features
- Top / Bottom Tank Level Control.
- Low / High Voltage Cut-Off.
- Dry Run / Over Load Protection.
- Dry Run Restart Timer Facility.
- Delay On Timer.
- Cyclic Timer.
- Adjustable Voltage & Current Settings.
- Micro controller Based Single Phase Preventer.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage (AC) | 3∅ - 300V to 470V |
| Operating Voltage for float Sensor | Min 12V to Max 30V DC |
| Calibration accuracy | +/- 5% |
| Dimension | L 130 X W 90 X H 70 mm |
| Operating Current For Load | |
| Relay Load | 3∅ - 10 Amp |
| Motor Rating** | |
| Indirect Load *** | Any Size |
DRY RUN / OVERLOAD - SSS
NIAGARA - AGRICULTURAL AUTOMATION
Suitable For
Single Phase Pumps
Features
- Dry Run Protection.
- Overload Protection.
- Seven Segment LED Display Indication.
Technical Specifications
| Description | Rating |
|---|---|
| Operating Voltage | 1∅ - 150V to 270V |
| Dimension | L 130 X W 90 X H 70 mm |
